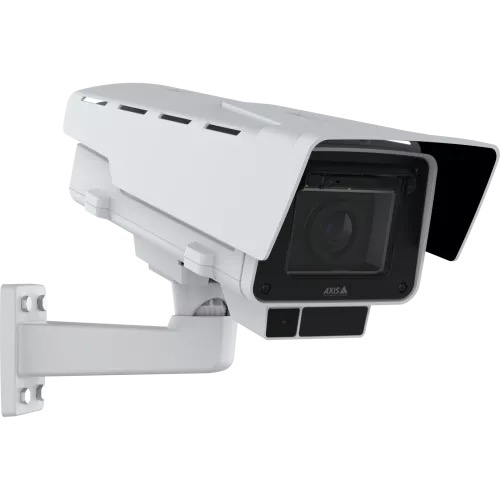

AXIS Q1728-LE 48 mm

1/1.2” image sensor, outdoor block camera with built-in wiper, NEMA 4X, IP66, IP67 and IK10-rated, 4K / 8 MP resolution, day/night, with Deep Learning Processing Unit (DLPU). ARTPEC-9 SoC. Built in wiper. Forensic WDR and Lightfinder 2.0, OptimizedIR, a power-efficient 850nm IR LED technology. Varifocal IR corrected 15.2-48.7 mm lens, 42°-13° HFOV with remote zoom and autofocus and corridor format bracket. Multiple, individually configurable H.264/H.265/AV1 with Zipstream and Motion JPEG. 8 MP stream up to 50/60 fps. AXIS Object Analytics, shock detection and active tampering alarm and open casing intrusion detection. AXIS Edge Vault with FIPS 140-3 Level 3 for added cyber security. Barrel distortion correction, defogging, electronic image stabilization and scene profiles. MQTT Support. Audio in jack, audio out with speaker pairing and supervised I/O port, microSD memory card slot. Serial port for RS422/485 communication. Powered by IEEE 802.3af Type2 Class 4 (PoE+) or 10-28 V DC power with redundancy. IDC punch or RJ45 connection. Carbon nanotube window heater, camera heater and fan. Arctic Temperature Control for start-up in -40°C to +60°C (-40 ºF to 140 ºF). Includes removable sunshield, wall bracket and cable glands. Midspan or power supply not included.
CAD $ 2,785.44 CAD $ 2,785.44
CAD $ 1.00

  • Brand
Brand: AXIS

Built on ARTPEC-9, with support for AV1 codec, this AI-powered block camera offers accelerated performance and lets you run impressive analytics applications on the edge. Available with a wide or tele lens, it features a built-in wiper to withstand harsh outdoor environments. AXIS Q1728-LE offers 8 MP at 60 fps and features a large 1/1.2" sensor for consistent low-light performance. Lightfinder 2.0 and Forensic WDR provide true colors and great forensic detail in challenging light or near darkness. Axis Zipstream with support for AV1, H.264, and H.265 significantly lowers bandwidth and storage requirements. Available in two variants with a choice of lenses: a wide (6-13 mm) lens with a 76°-32° horizontal field of view for surveillance in wide, open areas, and a tele (15-48 mm) lens with a 30°-40° horizontal field of view for great details at long distances. Plus, the built-in lens with remote zoom and focus is perfectly calibrated to save you time and effort.

Product Numbers:

AXIS Q1728-LE: 03210-001

AXIS Q1728-LE 48 mm: 03211-001



Technical Specifications

Datasheet
